CS-MV 1000/7

Home > Products > DC Systems > CS-MV > CS-MV 1000/7

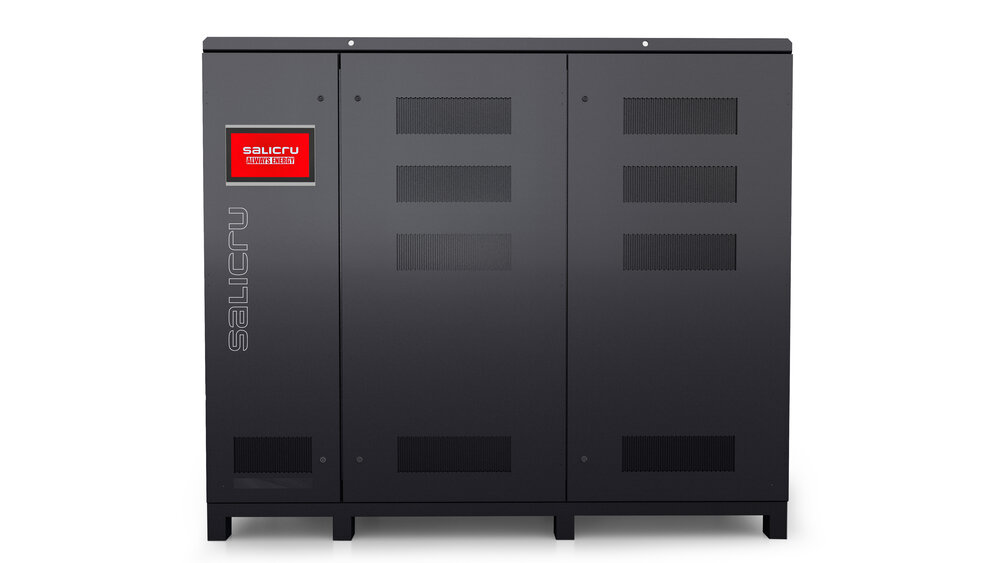

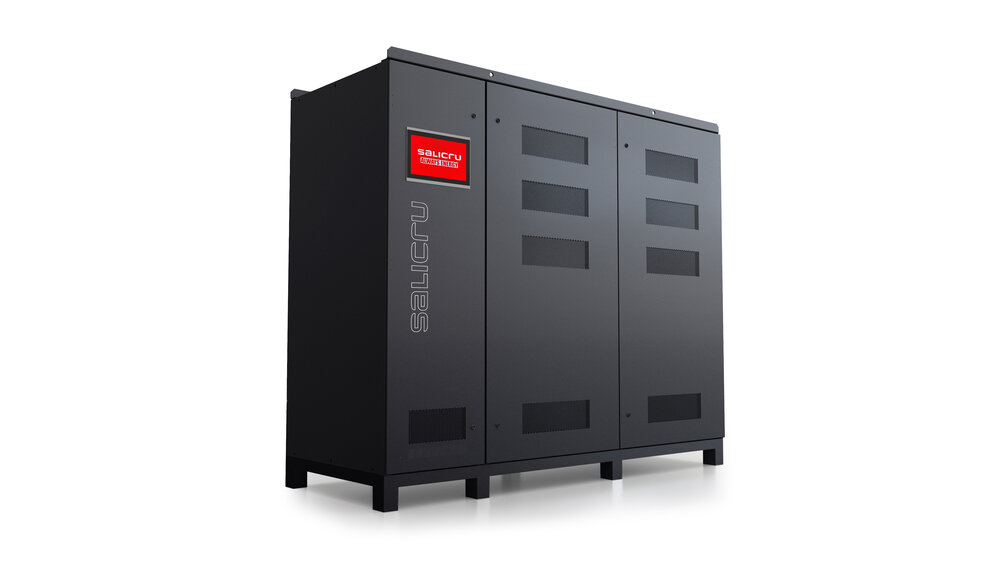

CS-MV 1000/7

DC power converter from 1000000 VA

Power your grid into the future

Input voltage DC (V): 1500 / 3300

Power (VA): 1000000

Code: CS-MV 1000/7

Specifications

View distributor

Downloads

Request information

Specifications

Technical specifications

INPUT

Input voltage (Vdc)

1500 / 3300

Voltage range

1350 ~ 1800 V / 3000 ~ 3900 V

OUTPUT

Power factor

Rated voltage

3x400 V

Accuracy

±1%

Power (VA/W)

1000000 / 1000000

Frequency

50 Hz

Performance

97 %

Admissible overloads

125% @ 30 s.

GENERAL

Operating temperature

-20ºC ~ + 40ºC

Cooling

Forced

STANDARDS

Safety

UNE-EN IEC 62477-2

Railway

UNE-EN 50121-3-2 / UNE-EN 50124-1 / UNE-EN 50124-2 / UNE-CLC/TS 50238-2 / UNE-EN 61287-1 / UNE-EN IEC 62477-2

Corporate cerification

ISO 9001, ISO 14001, ISO 45001

DIMENSIONS

Depth (mm)

1000

Width (mm)

2600

Height (mm)

2260

Non-contractual specifications. Final specifications according to project.
