SLC TWIN PRO2 A
SLC TWIN PRO2 A

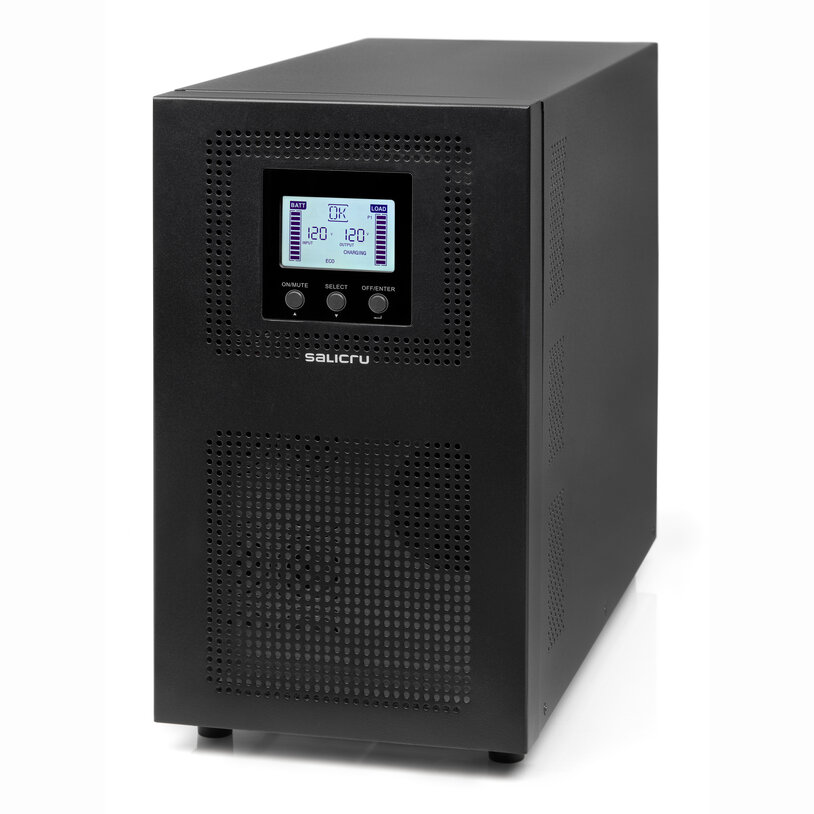

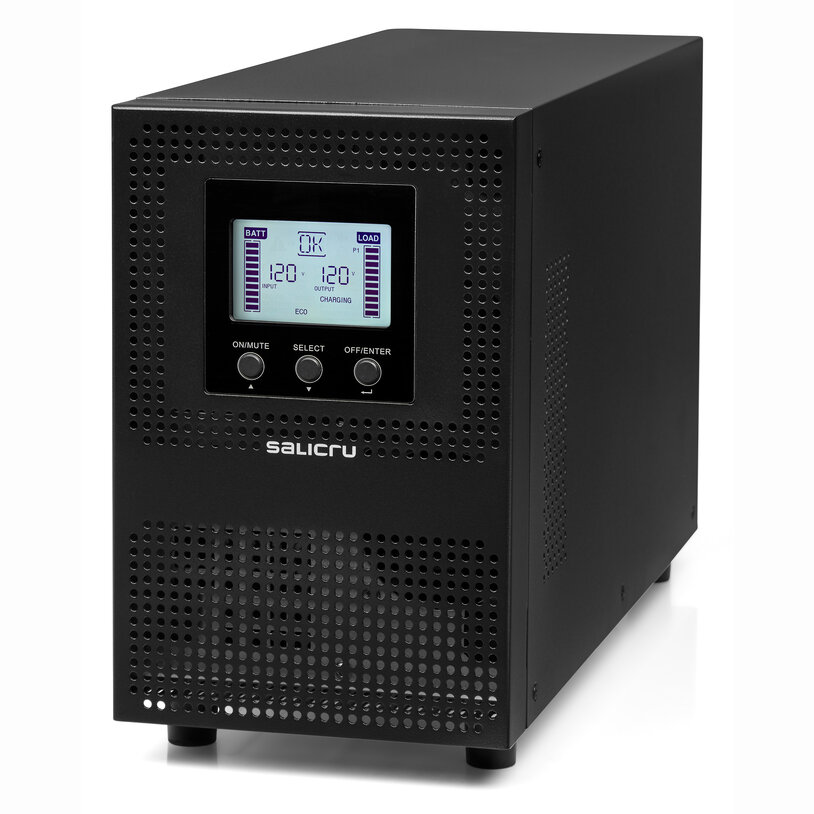

On-line double-conversion UPS 1000 VA to 3000 VA
Advanced on-line protection for sensitive and critical loads
Salicru’s SLC TWIN PRO2 A series is a UPS range in a tower format equipped with on-line double-conversion technology and the latest features to make it an advanced protection system for sensitive and critical loads.
High output power factor to ensure availability to all types of loads. Full control through status information via LCD display and keypad. And extensive monitoring and communication options via the built-in USB HID interface, an intelligent slot for SNMP cards or relays and a wide range of software packages available – free monitoring version downloadable for Windows, Linux, Unix or Mac and packages available for multi servers or virtualised systems.
For facilities that require more back-up time, there is a possibility of backup extensions using UPSs with extra charger and additional battery modules. Also notable is the possibility of Eco-mode operation to improve the efficiency of the device, EPO (emergency power off) functions, operation as a frequency converter and built-in battery test.
Characteristics
Applications
High-performance features for single-phase environments of up to 3 kVA
Power supply failures in IT systems can cause losses as a result of downtime and the time taken to restore the system to normal operation, and damage to network hardware. Many other disturbances (micro power outages, voltage fluctuations, frequency variations, harmonics, transients, etc.) can also cause IT environments to malfunction.
Performances
On-line double-conversion technology
Tower format
Control panel LCD display and keypad
USB interface with HID protocol
Smart slot for SNMP and relays
Available backup extensions
Cold-start function for startup from batteries
Eco-mode operation
SLC Greenergy Solutions
Management software
Pure sine wave output
Backup battery for mains interruptions
Display
- Configuration values, fault codes and remaining autonomy.
- Level of battery available.
- Level of load connected.
- Values for the input (current, voltage and frequency).
- Values for the output and battery (current, voltage and frequency).
- Settings mode.
Communications
- USB HID UPS: Enables control, parameter configuration and computer shutdown/hibernation via the USB port. Available for Windows, Linux and Mac.
- UPS monitoring and management software for closing files/applications in Windows, Linux, Unix and Mac environments. Free and downloadable from www.salicru.com.
- Intelligent slot for connecting SNMP or optocoupler cards.
Salicru warranty
- Online registration at www.salicru.com.
- Telephone technical support.
UL and FCC certifications
SLC TWIN PRO2 A series are certified for CANADA and USA markets.
Connections
- Input cable
- Sockets (NEMA 10A), programmable critical / noncritical.
- Socket NEMA 30A (only for 3000 VA model).
- Connection for battery module (only in models with extra charger).
- Smart slot for SNMP/potential-free contacts/MODBUS.
- Emergency stop (EPO).
- USB interface.
- RS-232 interface.
- ADSL/fax/modem transient protector.
Models
Showing 1 - 6 of 6 products
SLC-1000-TWIN PRO2 A
Input voltage (V):
100 / 110 / 115 / 120 / 127
Output voltage (V):
100 / 110 / 115 / 120 / 127
Power (VA):
1000
No. Of sockets:
6xNEMA 5-15R
SLC-2000-TWIN PRO2 A
Input voltage (V):
100 / 110 / 115 / 120 / 127
Output voltage (V):
100 / 110 / 115 / 120 / 127
Power (VA):
2000
No. Of sockets:
8xNEMA 5-20R
SLC-3000-TWIN PRO2 A
Input voltage (V):
100 / 110 / 115 / 120 / 127
Output voltage (V):
100 / 110 / 115 / 120 / 127
Power (VA):
3000
No. Of sockets:
8x5-20R + 1x5-30R
SLC-1000-TWIN PRO2 A B1
Input voltage (V):
100 / 110 / 115 / 120 / 127
Output voltage (V):
100 / 110 / 115 / 120 / 127
Power (VA):
1000
No. Of sockets:
6xNEMA 5-15R
SLC-2000-TWIN PRO2 A B1
Input voltage (V):
100 / 110 / 115 / 120 / 127
Output voltage (V):
100 / 110 / 115 / 120 / 127
Power (VA):
2000
No. Of sockets:
8xNEMA 5-20R
SLC-3000-TWIN PRO2 A B1
Input voltage (V):
100 / 110 / 115 / 120 / 127
Output voltage (V):
100 / 110 / 115 / 120 / 127
Power (VA):
3000
No. Of sockets:
8x5-20R + 1x5-30R
Showing 1 - 6 of 6 products
