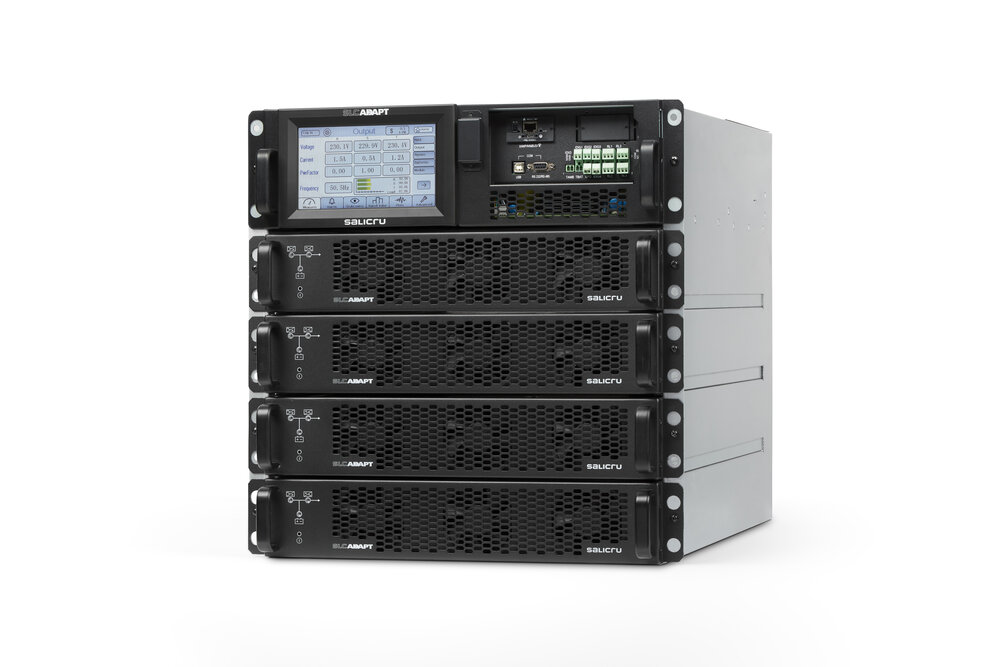

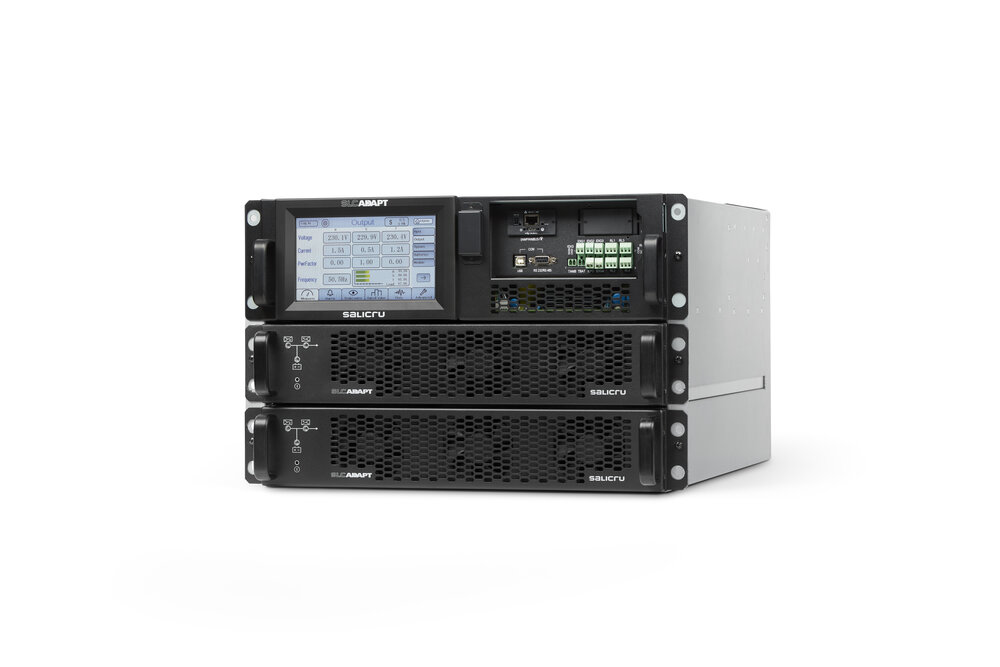

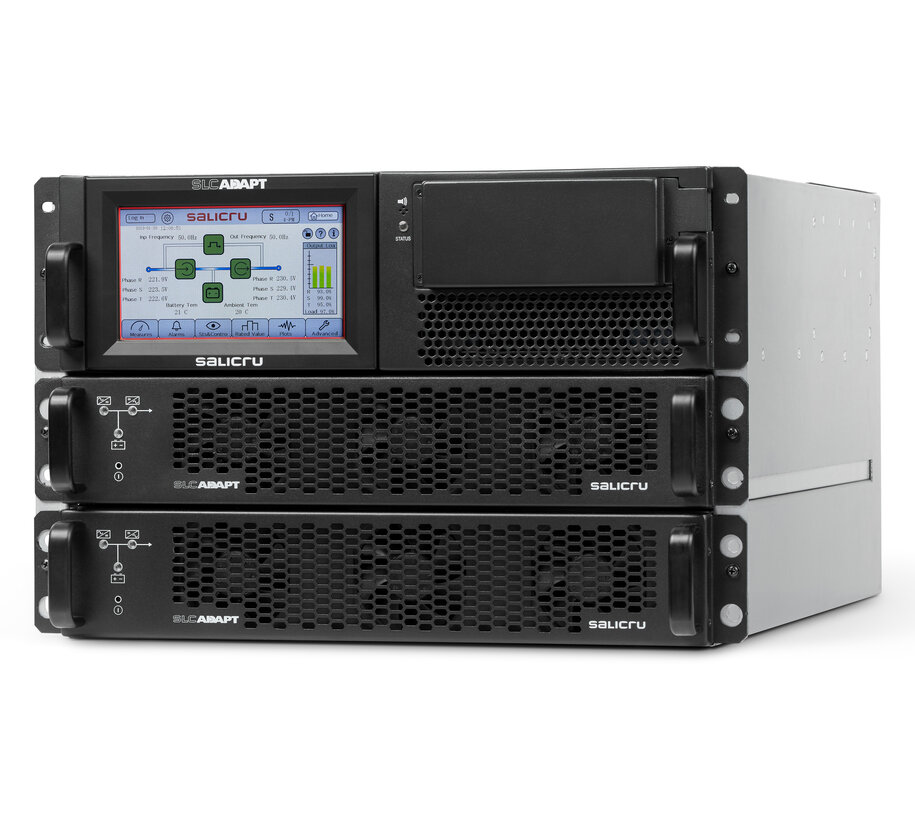

On-line double-conversion modular rack UPS and modules 6 and 9 kVA
Modularity, optimisation and efficiency in electrical safety for data centres
Salicru’s SLC ADAPT2 A series UPSs are on-line double-conversion modular solutions for superior electrical protection, featuring DSP control and three-level IGBT technology.
Modularity: The range of modules available -6 and 9 kW- together with the different configurable systems -2, 3, 4 and 6 modules per system- enables adaptation to any environment, with the option of paralleling systems to achieve greater protection or increased power.
Optimisation: High power density, modules occupying only 2U of height require less space in data centres and reduce installation costs (TCO). Moreover, expenditure can be optimised by simply adding new modules in line with the pace of growth of the data centre.
Efficiency: The modules with a unity output power factor (kVA = kW) operate with an efficiency > 96% and a very flat performance curve for all working modes. They also feature various operating modes (Eco-mode, Hibernation, Smart-Efficiency, etc.), which further increase the performance and efficiency of the system.
Characteristics
Applications
Scalable protection for better adaptation to growing needs
Salicru's SLC ADAPT2 A series modular solutions ensure reliability, quality and continuity and provide improved protection for small and medium-power data centres, both modular and virtualised, as well as IT infrastructures and applications for associated critical processes, avoiding the enormous costs resulting from interruptions in the operation of data centres.
Performances
On-line double-conversion technology
Output power factor PF=1
Parallel cabinet system
Touch screen
RS-232, RS-485 and relay interface
Smart slot for SNMP and relays
Available backup extensions
Eco-mode operation
Maintenance bypass
Separate bypass input
Smart-efficiency mode
Hot-pluggable and swappable plug & play modules

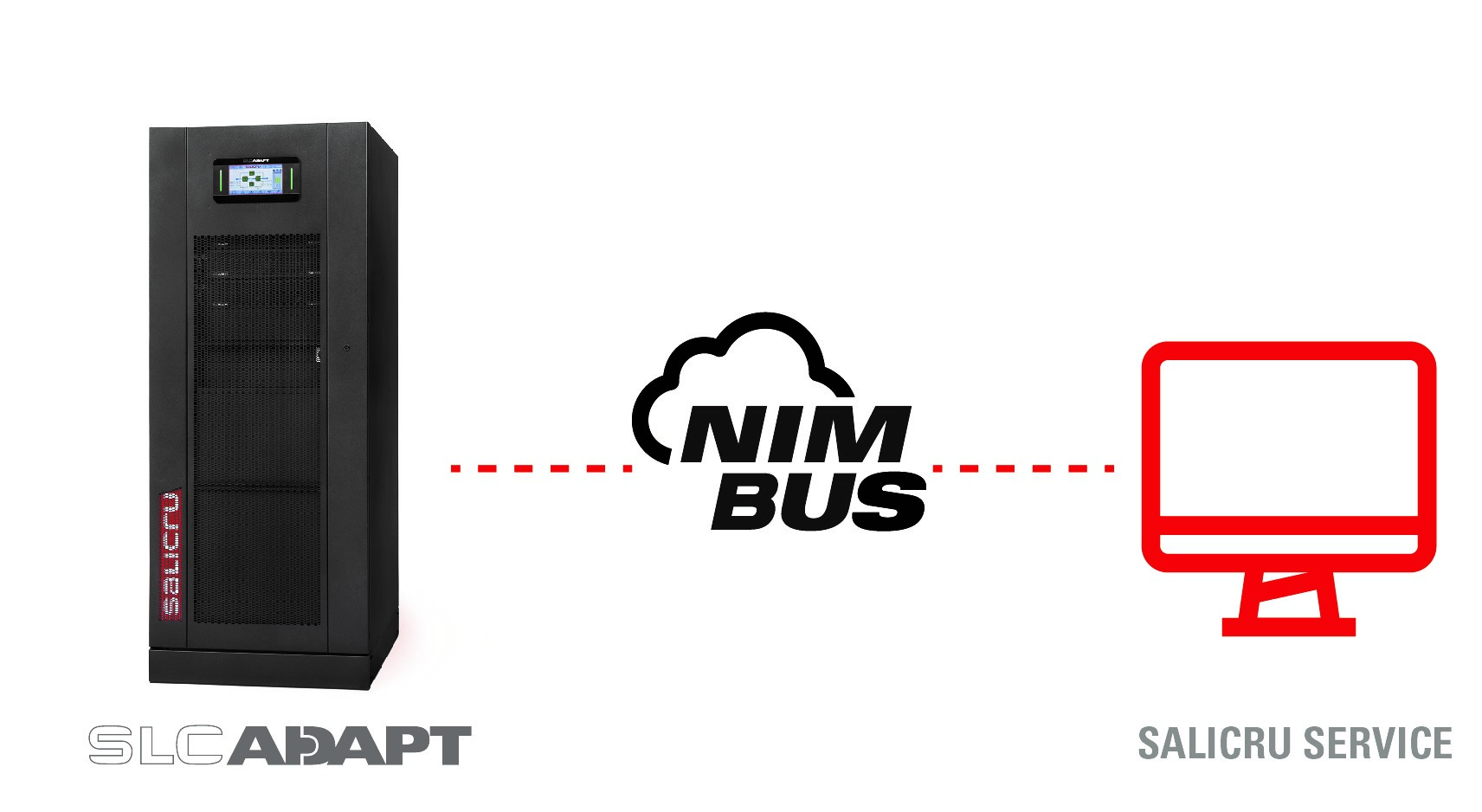

Remote maintenance
There are multiple remote maintenance options through the Nimbus Services connections, both in modalities and response, allowing immediate actions in case of incidents or advances on anomalous situations.

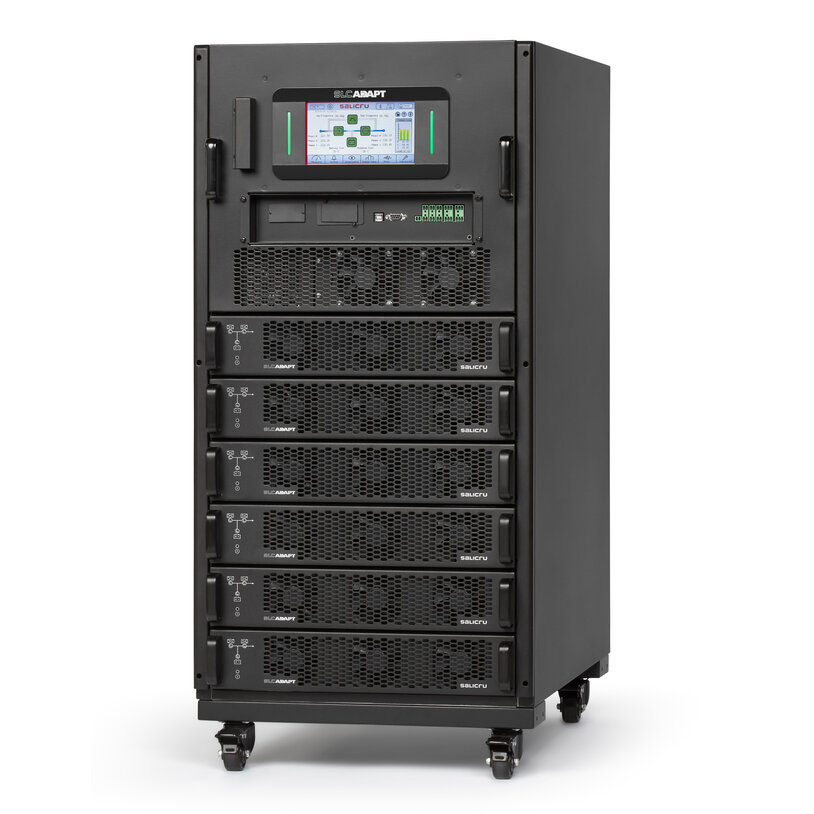

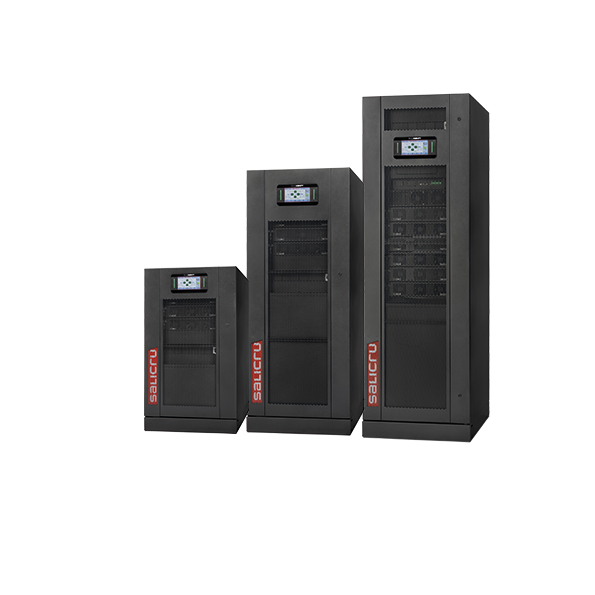

Built-in cabinet
Possibility of assembling the module systems in 1100/1600/2000 mm high cabinets with or without batteries included. Batteries can also be installed in additional cabinets.

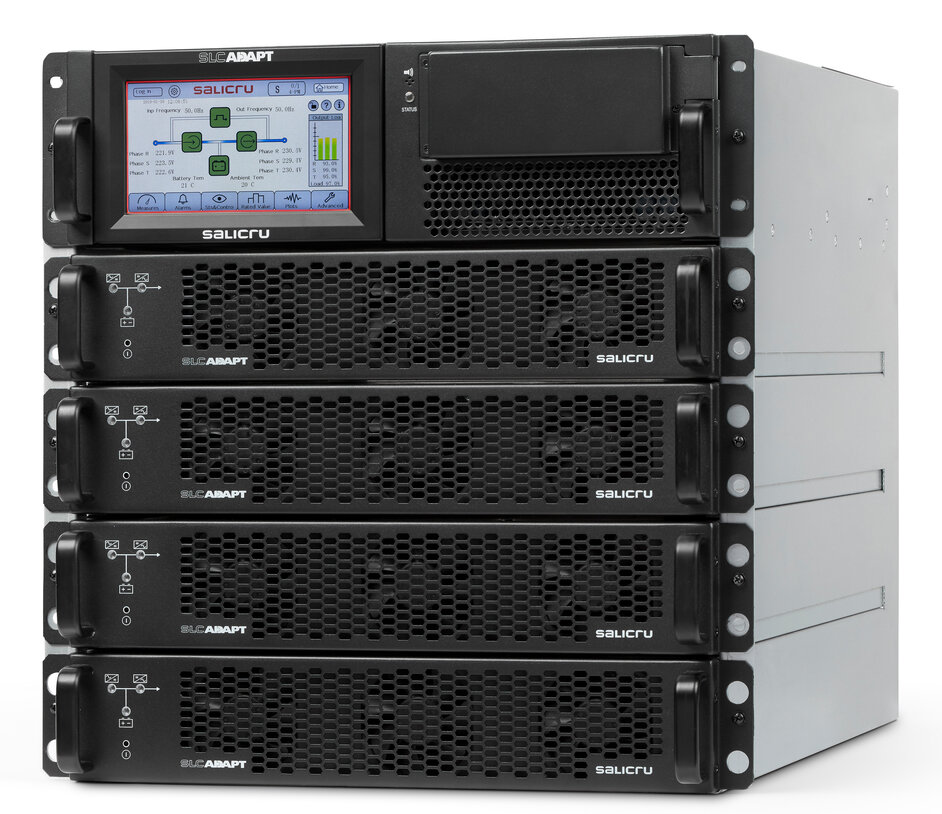

Power modules
6 and 9 kW power modules, with on-line double conversion technology, compact 2U height format and output power factor FP=1 (kVA=kW). Consists of a rectifier with PFC (power factor correction), 3-stage inverter type NPC, intelligent battery charger and DSP control for each module. Hot-swap and hot-plug functions for greater flexibility and better maintenance.

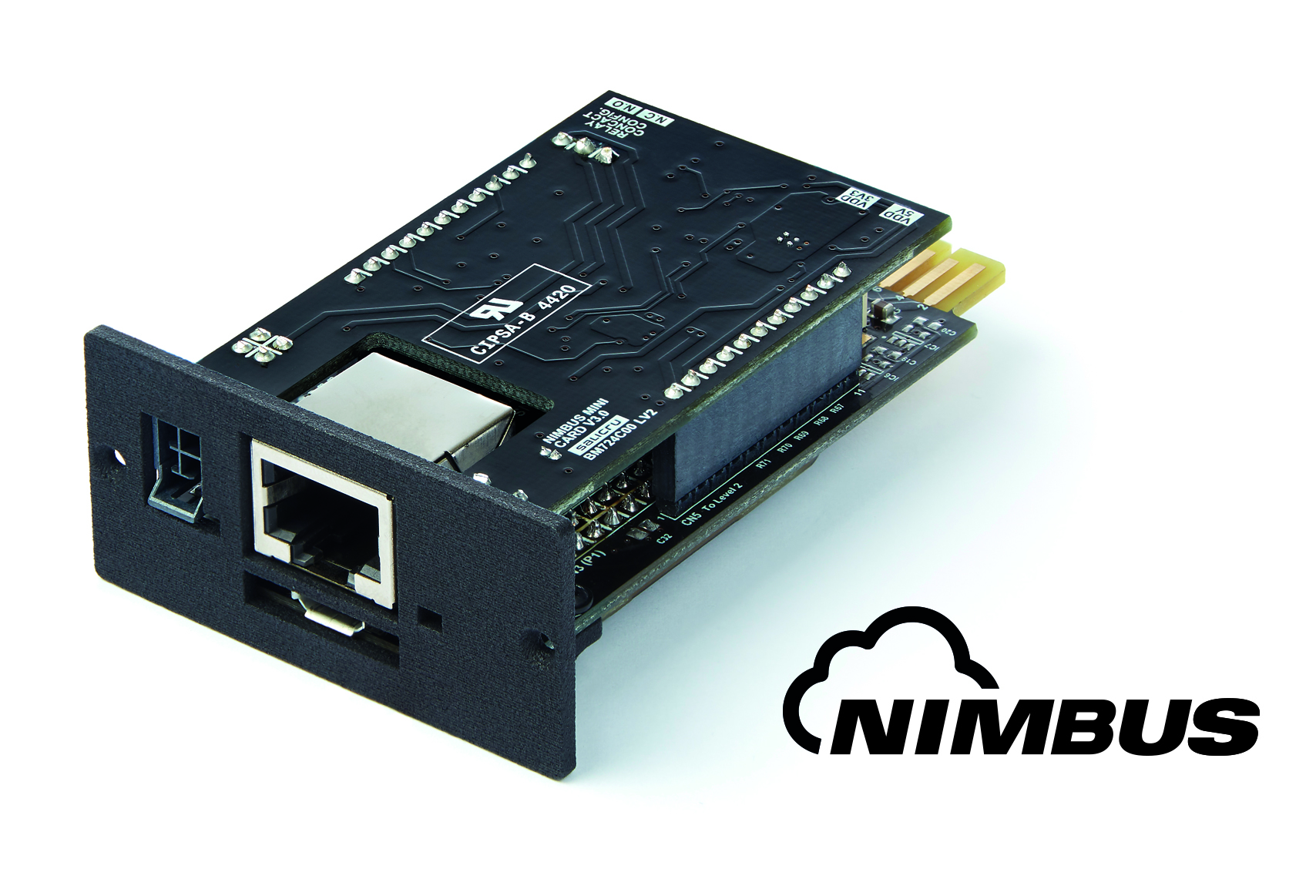

Continuous surveillance
By integrating the equipment feature of Salicru's Nimbus-cloud, optional, it is permanently monitored and provides a continuous analysis of the level of protection provided.

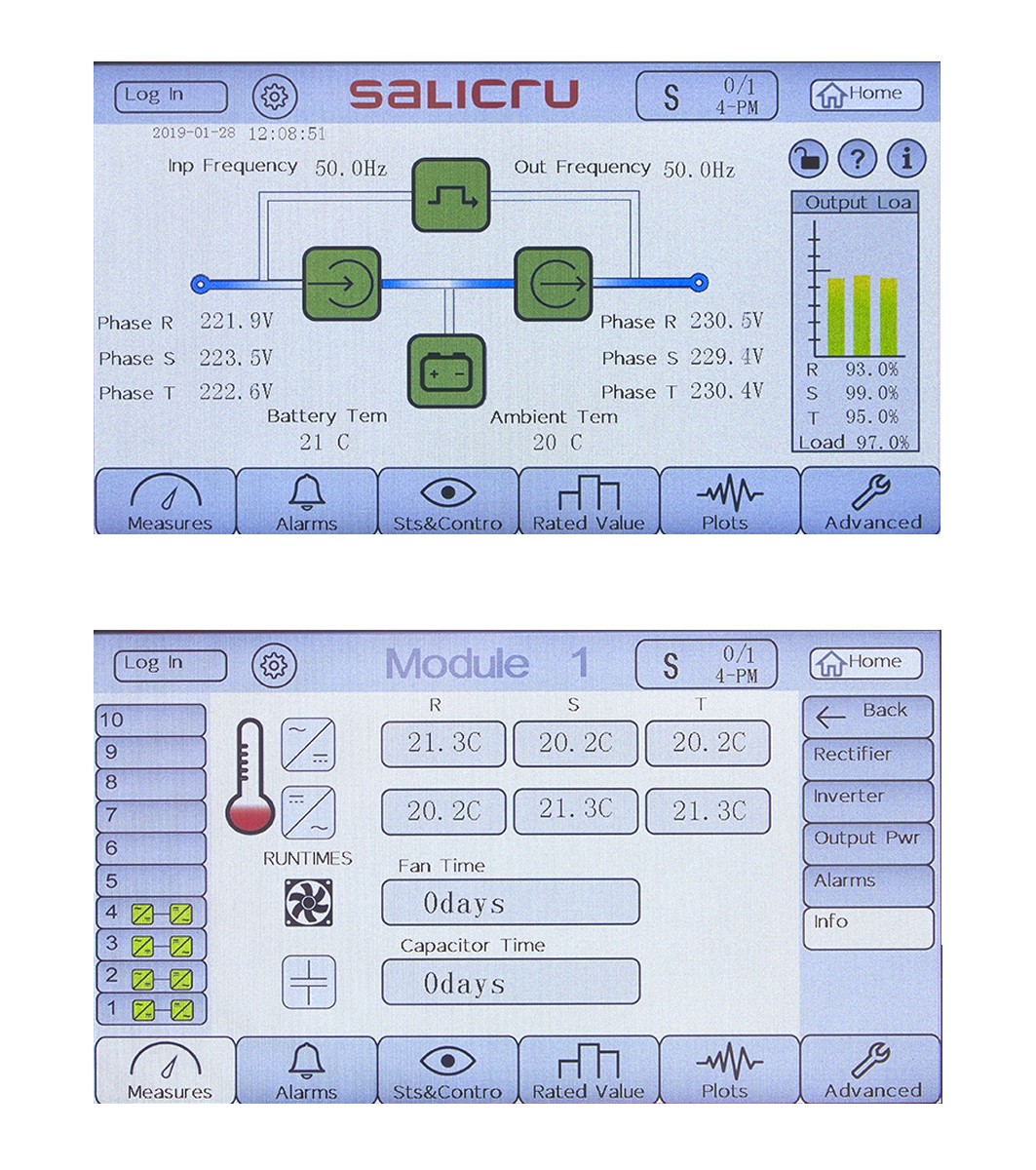

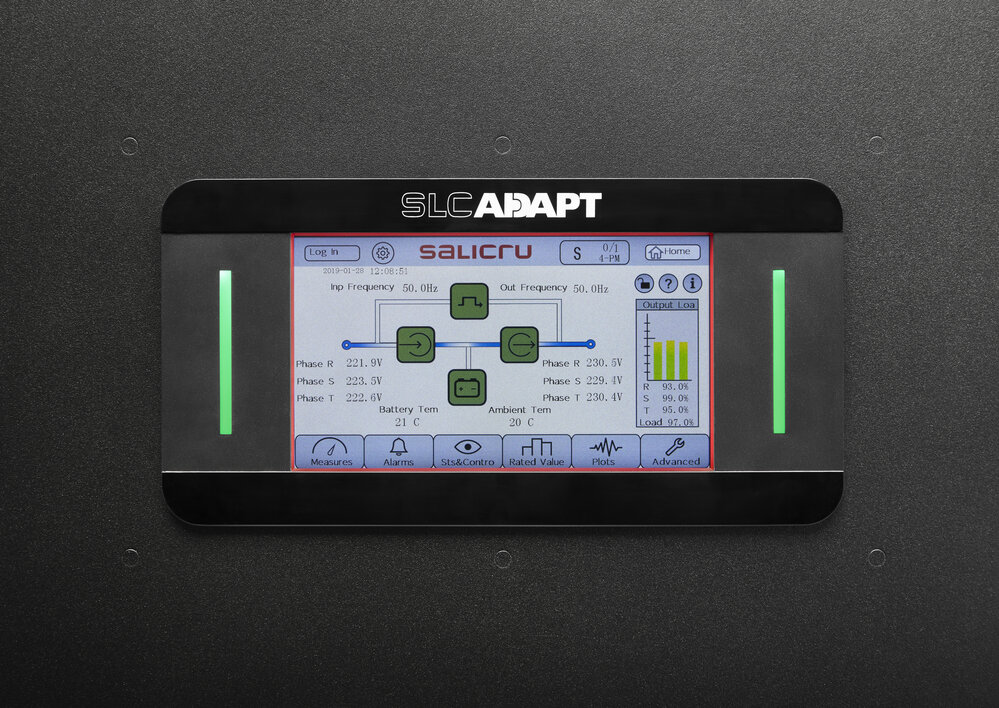

Display
- 7" colour touchscreen.
- Large touchpanel display that provides status information and useful records.
Models
Showing 1 - 6 of 6 products
SLC-#/2 ADAPT 18 A
Module power (VA / W):
6000 / 6000
No. Modules:
1 a 2 x 6 kVA / 1 a 2 x 9 kVA
Input voltage (V):
3x 208 / 220 V (3F + N)
Output voltage (V):
3x 208 / 220 V (3F + N)
System power (VA/W):
12000 / 12000
SLC-#/9-ADAPT2 18 A
Module power (VA / W):
9.000 / 9.000
No. Modules:
1 to 2
Input voltage (V):
3x 208 / 220 V (3F + N)
Output voltage (V):
3x 208 / 220 V (3F + N)
System power (VA/W):
18000 / 18000
SLC-#/4 ADAPT 27 A
Module power (VA / W):
6.000 / 6.000
No. Modules:
1 a 4 x 6 kVA / 1 a 3 x 9 kVA
Input voltage (V):
3x 208 / 220 V (3F + N)
Output voltage (V):
3x 208 / 220 V (3F + N)
System power (VA/W):
24000 / 24000
SLC-#/9-ADAPT2 27 A
Module power (VA / W):
9.000 / 9.000
No. Modules:
1 to 3
Input voltage (V):
3x 208 / 220 V (3F + N)
Output voltage (V):
3x 208 / 220 V (3F + N)
System power (VA/W):
27000 / 27000
SLC-#/6 ADAPT 54 A
Module power (VA / W):
6.000 / 6.000
No. Modules:
1 a 6 x 6 kVA / 1 a 6 x 9 kVA
Input voltage (V):
3x 208 / 220 V (3F + N)
Output voltage (V):
3x 208 / 220 V (3F + N)
System power (VA/W):
36000 / 36000
SLC-#/9-ADAPT2 54 A
Module power (VA / W):
9.000 / 9.000
No. Modules:
1 to 6
Input voltage (V):
3x 208 / 220 V (3F + N)
Output voltage (V):
3x 208 / 220 V (3F + N)
System power (VA/W):
54000 / 54000
Showing 1 - 6 of 6 products
