EMi3 A
EMi3 A

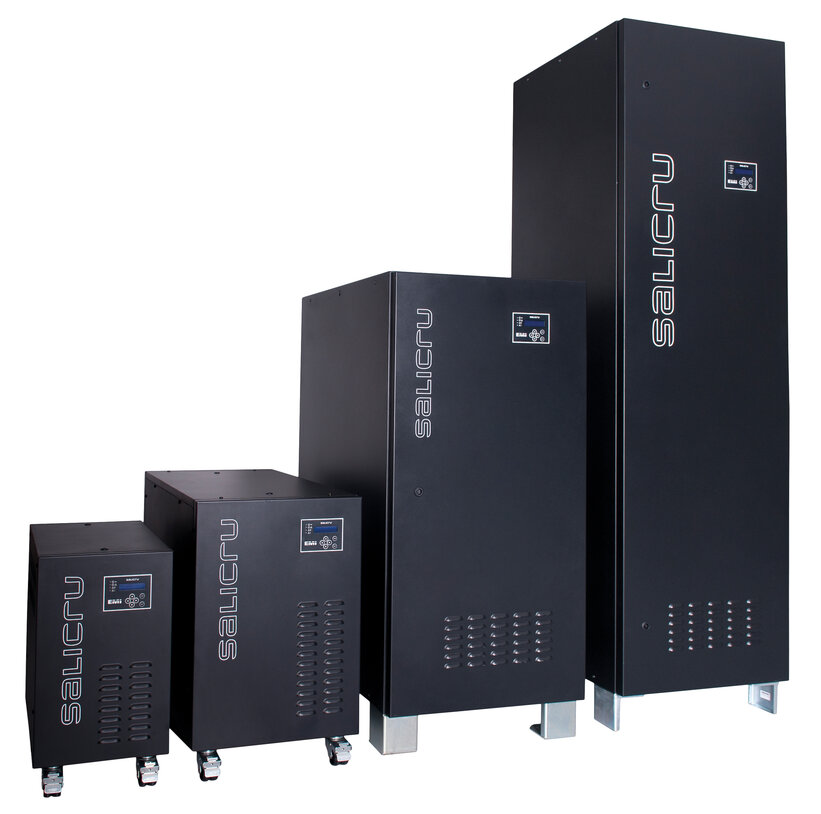

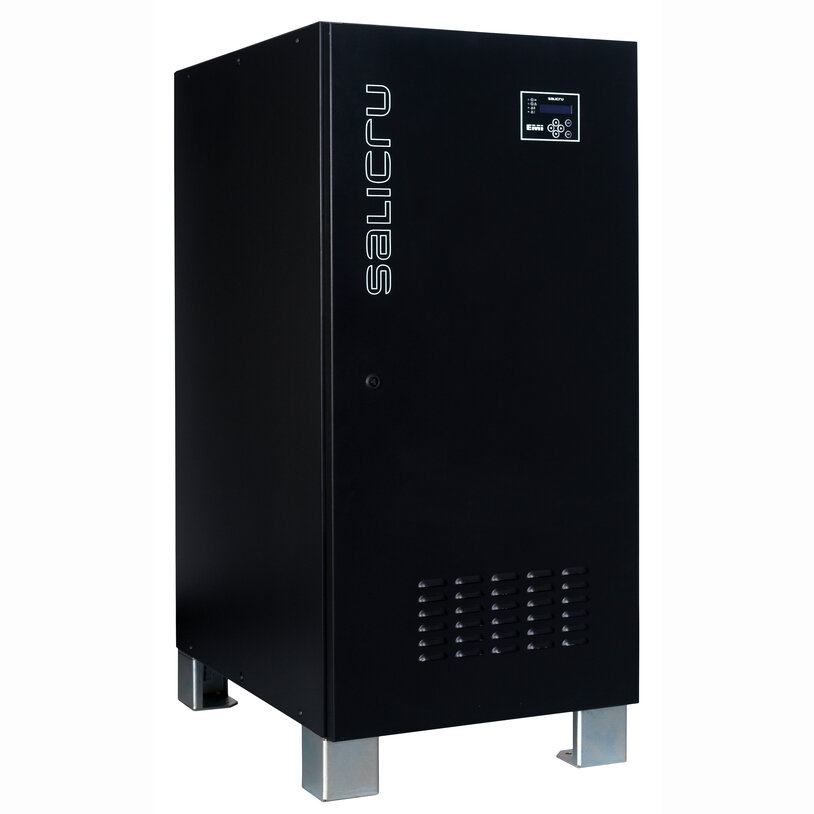

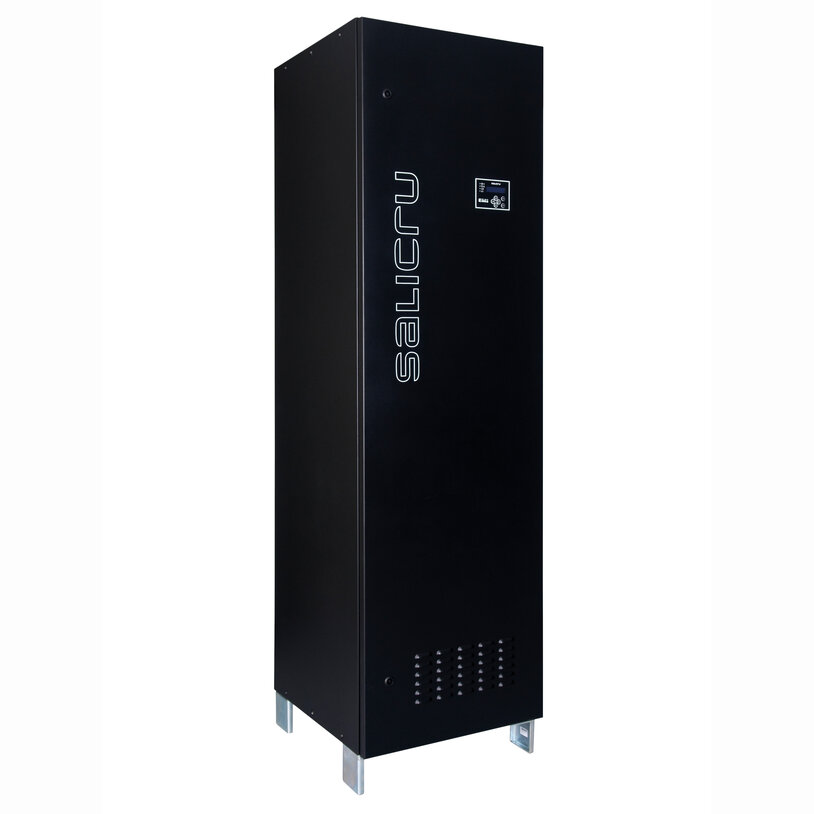

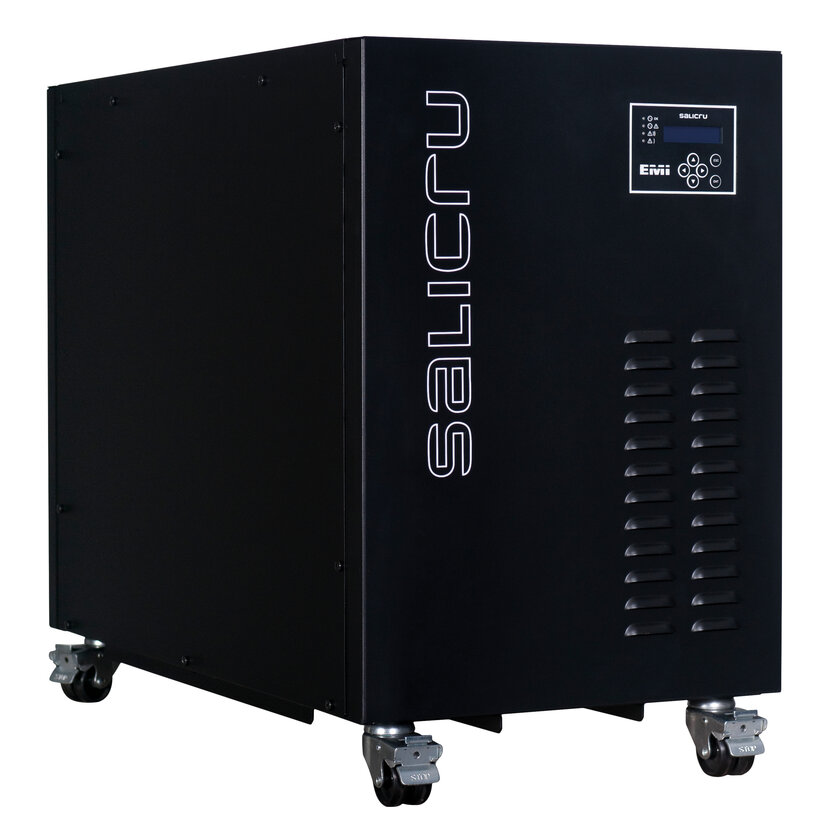

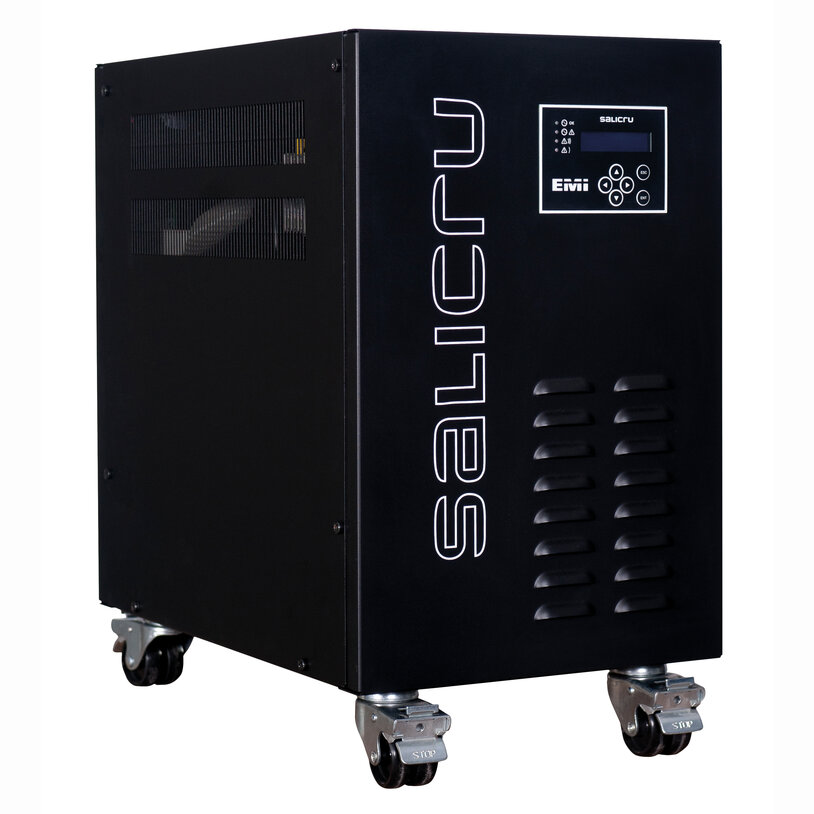

Servomotor voltage stabiliser 15 kVA - 2,5 MVA
Constant stabilisation and savings in overvoltages
Issues such as the constant variation of loads connected to the mains, interference generated by the loads themselves, possible failures in distribution lines, voltage drops due to the length of the lines and problems caused by lightning make it impossible to have an electricity supply with a stable voltage. Salicru's EMi3 A servomotor voltage stabilisers are the ideal solution to protect sensitive equipment from constant voltage fluctuations in the power supply.
Moreover, in the event of drops in the total consumption of a power line, voltage tends to rise, causing overconsumption in the equipment that remains connected. By using a stabiliser, overconsumption can be eliminated, thereby producing significant cost savings and ensuring that connected loads function within the voltage range for which they were designed.
The operating principle is based on regulation, by means of a control circuit, of the variable autotransformer that supplies the voltage for the booster transformer in series, either in phase or in phase opposition, to achieve the rated value of the output voltage.
Characteristics
Applications
Effective protection for all types of critical load
Actions and operations in electrical substations, electric ovens, numerical controls, lifts, graphic printing equipment, production lines, medical equipment, TV repeater stations, machine tools (milling machines, trimming machines, presses, lathes, polishing machines, electrical discharge machines, etc.) are some of the applications, because of their power, extremely reactive nature and high sensitivity to voltage variations.
Performances
Output power factor PF=1
Control panel LCD display and keypad
RS-232 and relay interface
Output precision better than ±1%
High response speed
Regulation range +/-15%
Communications
- Slot for remote management or RS-232 interface.
- RS-485 serial ports. MODBUS communications protocol.
- Programmable dry contact interface (x9).
- Digital input.
Display
- LCD 2x16 characters.
- Navigation keys.
- LEDs (alarm, bypass, normal operation and communications).
Options
- Output current, power and overload measurement.
- Maximum and minimum output voltage protection.
- Manual and automatic bypass.
- Overload contactor.
- Communications and relay module.
- Other regulation ranges.
- Galvanic isolation transformer.
- Output circuit breaker.
- Extended ambient operating temperature from -20ºC.
Connections
- Display LCD
- Variable autotransformer
- Control PCB
- Input protection
- Input and output terminals
- Surge protection
- Motor supply transformer
- Booster transformer
Models
EMi3 T 15-2F ±15% 3x220
Regulation margin:
±15%(2)
Output voltage (V):
3x208 / 3x220 V (3F+N)
System power (VA/W):
15000 / 15000
EMi3 T 20-2F ±15% 3x220
Regulation margin:
±15%(2)
Output voltage (V):
3x208 / 3x220 V (3F+N)
System power (VA/W):
20000 / 20000
EMi3 T 35-2F ±15% 3x220
Regulation margin:
±15%(2)
Output voltage (V):
3x208 / 3x220 V (3F+N)
System power (VA/W):
35000 / 35000
EMi3 T 55-2F ±15% 3x220
Regulation margin:
±15%(2)
Output voltage (V):
3x208 / 3x220 V (3F+N)
System power (VA/W):
55000 / 55000
EMi3 T 70-2F ±15% 3x220
Regulation margin:
±15%(2)
Output voltage (V):
3x208 / 3x220 V (3F+N)
System power (VA/W):
70000 / 70000
EMi3 T 90-2F ±15% 3x220
Regulation margin:
±15%(2)
Output voltage (V):
3x208 / 3x220 V (3F+N)
System power (VA/W):
90000 / 90000
EMi3 T 110-2F ±15% 3x220
Regulation margin:
±15%(2)
Output voltage (V):
3x208 / 3x220 V (3F+N)
System power (VA/W):
110000 / 110000
EMi3 T 140-2F ±15% 3x220
Regulation margin:
±15%(2)
Output voltage (V):
3x208 / 3x220 V (3F+N)
System power (VA/W):
140000 / 140000
EMi3 T 175-2F ±15% 3x220
Regulation margin:
±15%(2)
Output voltage (V):
3x208 / 3x220 V (3F+N)
System power (VA/W):
175000 / 175000
EMi3 T 220-2F ±15% 3x220
Regulation margin:
±15%(2)
Output voltage (V):
3x208 / 3x220 V (3F+N)
System power (VA/W):
220000 / 220000
