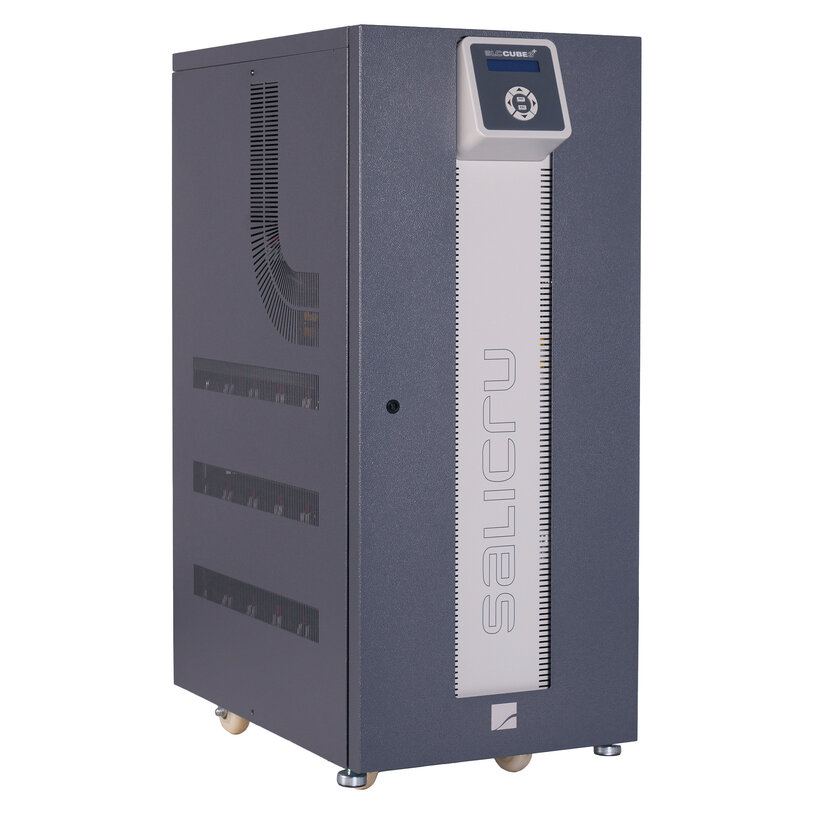

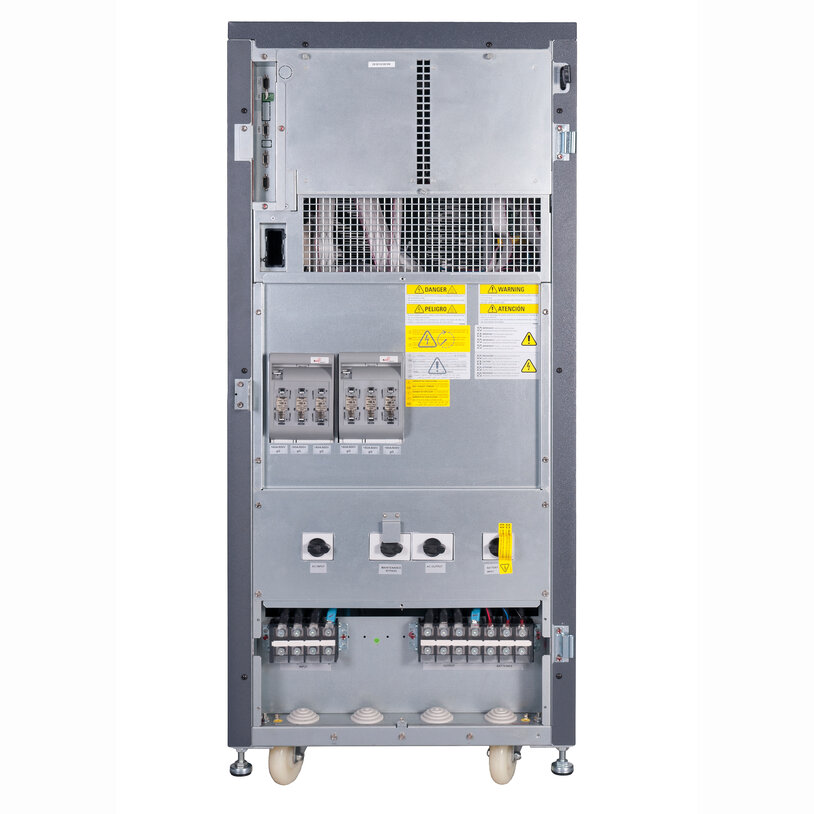

SLC-15-CUBE3+ B1
SLC-15-CUBE3+ B1
15 kVA three-phase Uninterruptible Power Supply System with extra charger
Energy efficiency with superior electrical protection
Input voltage (V):
220 / 230 / 240 V - 3 x 380 / 3 x 400 / 3 x 415 V (3F + N)
Output voltage (V):
220 / 230 / 240 V - 3 x 380 / 3 x 400 / 3 x 415 V (3F + N)
Power (VA):
15000
Type:
UPS with extra charger
Code: 681LA000006
Specifications
Technical specifications
TECHNOLOGY
On-line, double conversion, HF, DSP control
INPUT
Voltage
220 / 230 / 240 V - 3 x 380 / 3 x 400 / 3 x 415 V (3F + N)
Voltage range
+15% / -20% (configurable)
Rated frequency
50 / 60 Hz
Total harmonic distortion (THDi)
100% load: <1.5% / 50% load: <2.5% / 10% load: <6.0%
Power factor
1 from 10% load
Rectifier topology
Three-phase IGBT full wave, soft start, PFC, transformerless
OUTPUT
Power factor
0,9
Voltage
220 / 230 / 240 V - 3 x 380 / 3 x 400 / 3 x 415 V (3F + N)
Dynamic accuracy
± 2% dynamic
Static accuracy
± 1% steady
Response time accuracy
20 ms for load steps 0% ÷ 100% and voltage drop up to -5%
Power (VA/W)
15000 / 13500
Total harmonic distortion (THDv) Linerar load
<0.5%
Total harmonic distortion (THDv) Non~linear load
<1.5% (EN-62040-3)
Synchronised frequency
50/60 Hz ±5 Hz (selectable)
Frequency
50/60 Hz +/- 5 Hz (selectable)
Frequency accuracy (battery mode)
50/60 Hz ±0.05%
Synchronous speed
From 1 Hz/s to 10 Hz/s (programmable)
Eco-mode performance
95,5%
Total performance in On-line mode
7.5÷60 kVA: 92.0%÷93.0% / 80÷200 kVA: 94.0%÷95.0%
Admissible overloads
125% for 10 min / 150% for 60 s / >150% for 20ms
Crest factor
3,4 a 1
MANUAL BYPASS
Protections
No breaks
STATIC BYPASS
Type and activation criteria
Solid state, controlled by microprocessor
Transfer times in Smart Eco-mode
4 ms (typical)
Transfer times in On-line
Nil
Transfer to bypass
Immediate, for overloads exceeding 150%
Retransfer
Automatic, after alarm deactivation
BATTERY
Battery type
Lead acid, sealed, maintenance free
Charging voltage regulation
Batt-Watch
COMMUNICATION
Ports
1 x RS232/RS485 + 1xUSB,with Modbus protocol
Relay interface
4 x AC failure, bypass, low battery and general
Intelligent slot
1, for SNMP
Monitoring software
Viewpower / UPSMAN

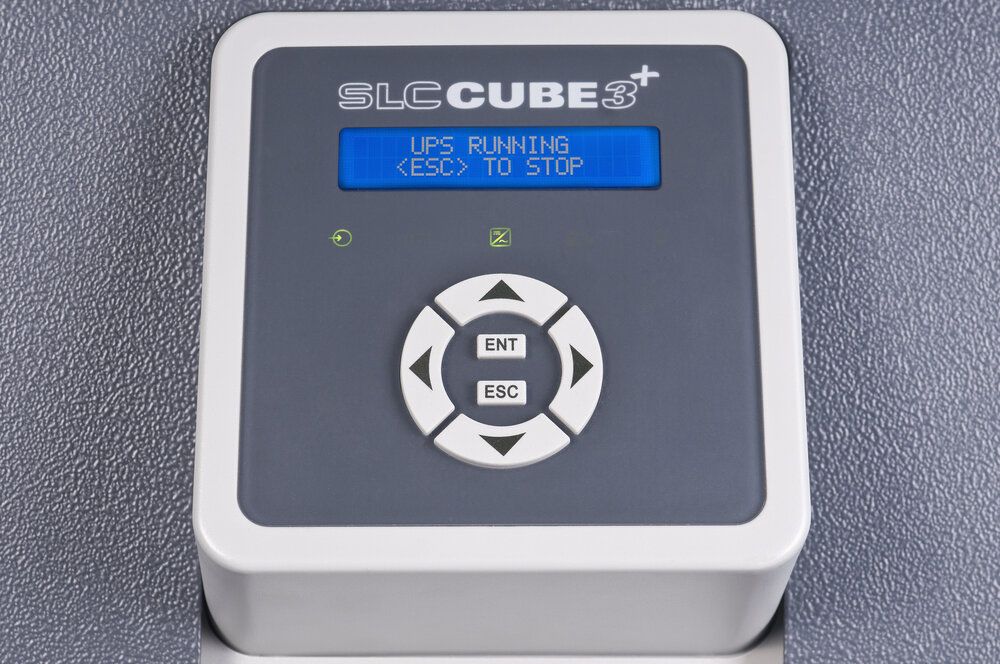

Backlit LCD display
LCD display, LEDs and keyboard
GENERAL
Operating temperature
0º C ÷ +40º C
Relative humidity
Up to 95%, non-condensing
Maxium operating altitude
2,400 masl (3)
Acoustic noise at 1 metre
<52 dB(A)(4)
SYSTEMS
Maximum no. parallel systems
Yes, up to 4 units. Ring connection. Frequency converters (CF) are parallel. A parallel system cannot be configured in ECO mode
STANDARDS
Safety
EN-IEC 62040-1
Electromagnetic compatibility (EMC)
EN-62040-2
Operation
VFI-SS-11 (EN-62040-3)
Corporate cerification
ISO 9001, ISO 14001, ISO 45001
DIMENSIONS
Depth (mm)
775
Width (mm)
450
Height (mm)
1100
WEIGHT
Weight (kg)
102
(1) Up to 60 kVA.
(2) Only for three-phase input / output models. FP = 0.8 for other configurations.
(3) Power derating for higher altitudes up to 5000 masl.
(4) <65 dB(A) for 80 to 120 kVA models / <70 dB(A) for 160 to 200 kVA models.
Video
3D
View distributor
Select Region and Country/Province to view Distributors
Accessories
Generic
BATT MOD for CUBE3+ 0/2x62 7/9/12Ah 7,5-20KVA
Empty Battery Module to house 2 branches of 62 batteries of 7/9/12 Ah for SLC CUBE3+ series equipment from 7.5 to 20 kVA
Code: 681BU000325
BATT MOD for CUBE3+ 0/62 24Ah 7,5-20KVA
Empty Battery Module to house 1 branch of 62 batteries of 24 Ah for SLC CUBE3+ series equipment from 7.5 to 20 kVA
Code: 681BU000341
BATT MOD for CUBE3+ 0/62 45Ah 7,5-20KVA
Empty Battery Module to house 1 branch of 62 batteries of 45 Ah for SLC CUBE3+ series equipment from 7.5 to 20 kVA
Code: 681BU000321
BM-CUBE3+ L-P-15-2/2
External Manual Bypass for SLC CUBE3+ 15 kVA series equipment with single-phase input and output configuration. Allows maintenance to be carried out without interrupting the power supply to the protected equipment.
Code: 681OP000089
EAN: BM-CUBE3+ L-P-15-2/2
BM-CUBE3+ MB-P-15-2/4
External Manual Bypass for SLC CUBE3+ 15 kVA series equipment with single-phase input and three-phase output configuration. Allows maintenance to be carried out without interrupting the power supply to the protected equipment.
Code: 681OP000204
BM-CUBE3+ NB-P-15-4/2
External Manual Bypass for SLC CUBE3+ 15 kVA series equipment with three-phase input and single-phase output configuration. Allows maintenance to be carried out without interrupting the power supply to the protected equipment.
Code: 681OP000093
EAN: BM-CUBE3+ NB-P-15-4/2
BM-CUBE3+ P-15-4/4
External Manual Bypass for SLC CUBE3+ 15 kVA series equipment three-phase input and output configuration. Allows maintenance to be carried out without interrupting the power supply to the protected equipment.
Code: 681OP000047
EAN: BM-CUBE3+ P-15-4/4
CAB SLC BZ192 DB9M/DB9H 1.8m
Communication extension cable, DB9M/DB9H connectors, 1.8m length
Code: 663AC000005
CAB SLC BZ192 DB9M/DB9H 10m
Communication extension cable, DB9M/DB9H connectors, 10 m long
Code: 663AC000006
CAB SLC BZ192 DB9M/DB9H 3m
Communication extension cable, DB9M/DB9H connectors, 3m length
Code: 663AC000004
CAB SLC BZ192 DB9M/DB9H 5m
Communications extension cable, DB9M/DB9H connectors, 5m length
Code: 663AC000003
CABLE PARALELO CUBE3+
Communication cables required to manage the parallel system of two devices. One cable is required for each device that forms the parallel system. 5 metres long
Code: 663AC000075
Autonomy
Autonomy curves
SLC 15 CUBE3+ and SLC 15 CUBE3+ B1
|
|
SLC-15-CUBE3+
|
|
|
SLC-15-CUBE3+ 62BS015
|
|
|
SLC-15-CUBE3+ 62BS016
|
|
|
SLC-15-CUBE3+ B1 + 1 MOD BAT CUBE3+ 2x62BS015 32A (681BU000522)
|
|
|
SLC-15-CUBE3+ B1 + 1 MOD BAT CUBE3+ 2x62BS016 32A (681BU000523)
|
|
|
SLC-15-CUBE3+ B1 + 1 MOD BAT CUBE3+ 2x62BS017 32A (681BU000524)
|
