SLC-8000-TWIN RT2 B1
Specifications
Technical specifications
TECHNOLOGY
On-line double-conversion
FORMAT

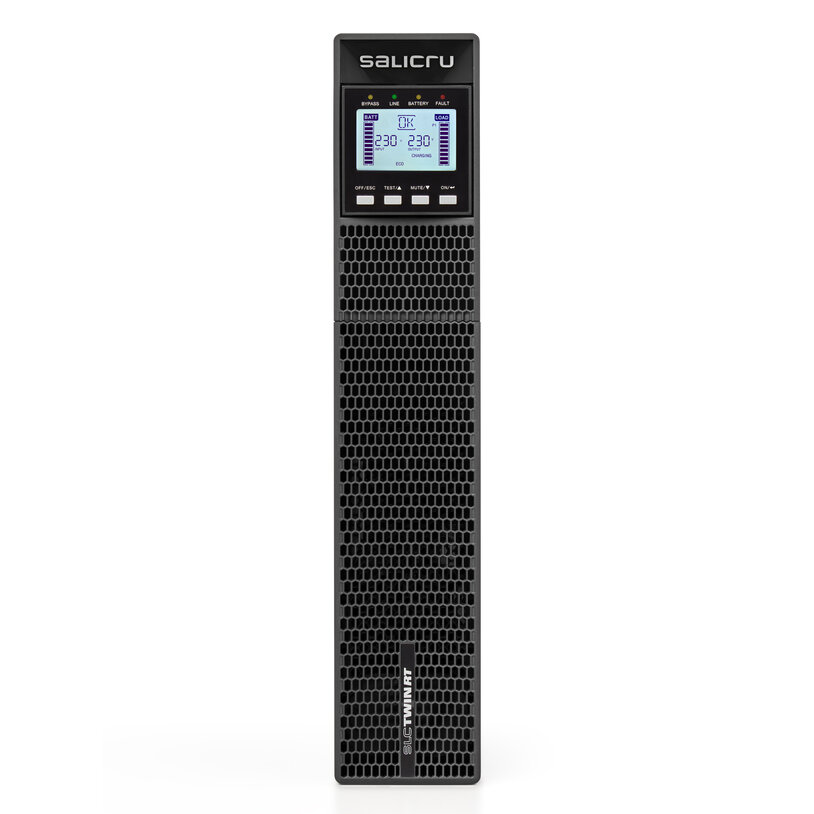

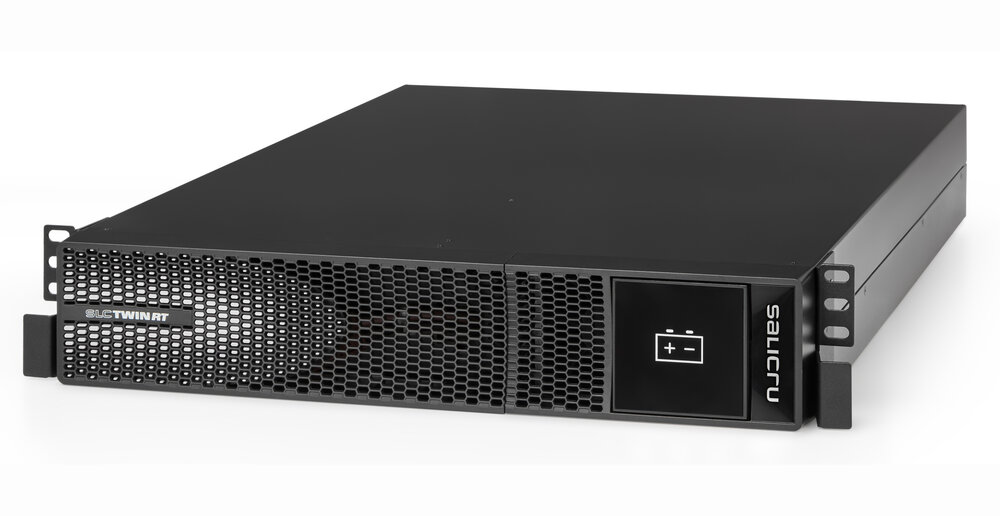

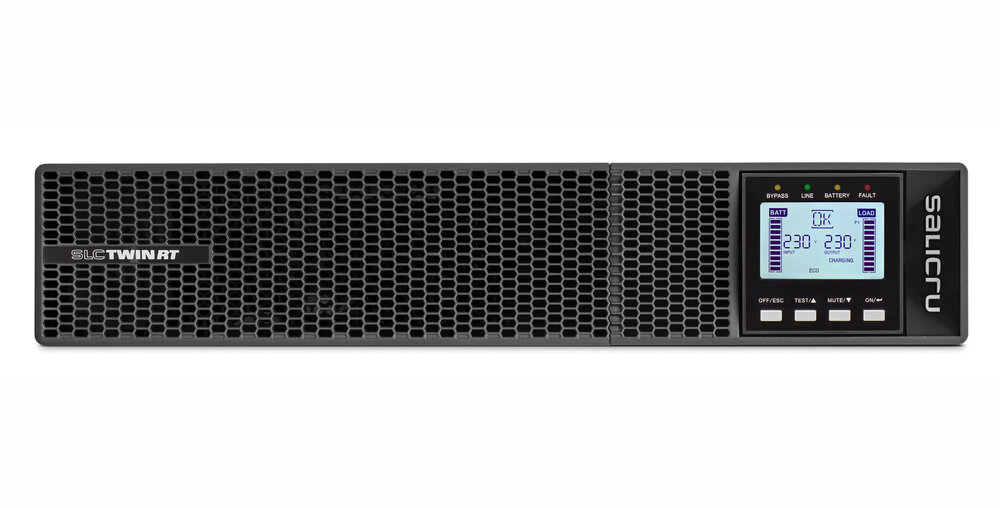

Convertible tower/rack
INPUT
Voltage
220 / 230 / 240 V
Voltage range
110 ÷ 300 V up to 50% load
Rated frequency
50 / 60 Hz (auto-detection)
Frequency range
±4 Hz
Total harmonic distortion (THDi)
≤4%
Power factor
>0.99 at 100% load // 0.97 at 50% load
OUTPUT
Power factor
1 (2)
Voltage
208 / 220 / 230 / 240 V
Static accuracy
±1%
Power (VA/W)
8000 / 8000
Total harmonic distortion (THDv) Linerar load
<1%
Total harmonic distortion (THDv) Non~linear load
<4%
Synchronised frequency
±4 Hz
Frequency accuracy (battery mode)
±0.1 Hz
Total performance in On-line mode
≥93 ÷ 94%
Admissible overloads
< 110% for 10 min / < 130% for 1 min / > 130 % for 1 s
Socket type

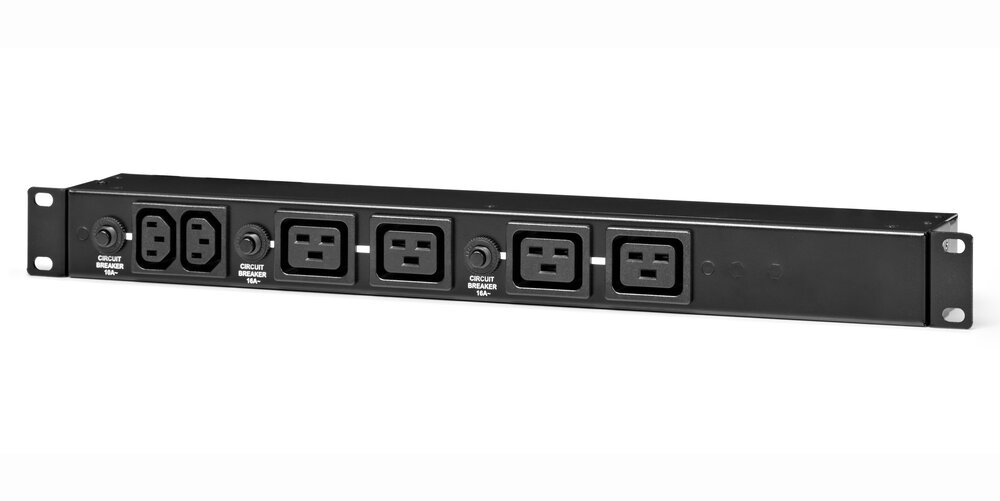

Terminals + PDU
Parallel
Yes, up to 3 units(3)
STATIC BYPASS
Voltage (V)
208 / 220 / 230 / 240 V (1)
Frequency range
50/60 Hz ±4 Hz
BATTERY
Protection
Against power surges, undervoltages and alternating current components
Battery type
Not included, Pb-Ca sealed, AGM, maintenance-free
Charge type
I/U (constant current/constant voltage)
Recharge time
7 ÷ 9 hours to 90%
CHARGER
Temperature voltage compensation
Yes
COMMUNICATION

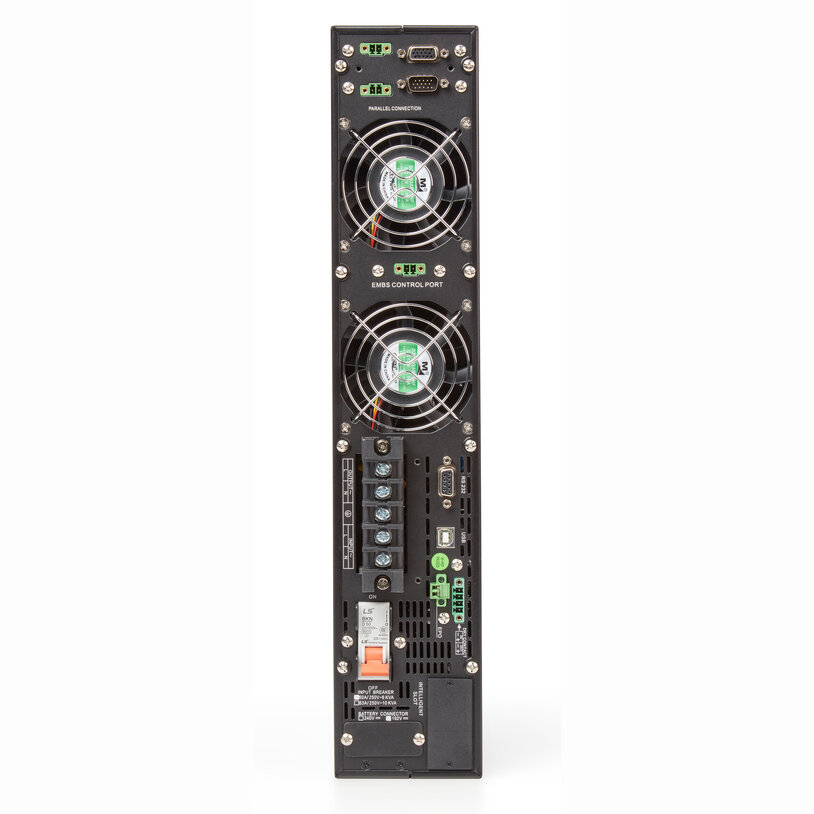

Ports
USB / RS-232 / relay
Intelligent slot
Smart slot for SNMP / potential-free contacts / MODBUS
Monitoring software
Yes, for Windows, Linux and Mac
OTHER FUNCTIONS
Cold start (start-up from batteries)
Yes
Emergency stop (EPO)
Yes
OPERATING MODES
Frequency converter (CVCF)
Yes(4)
GENERAL
Operating temperature
0º C ÷ +40º C
Relative humidity
Up to 95%, non-condensing
Maxium operating altitude
2,400 masl (power degradation up to 5,000 m)
Acoustic noise at 1 metre
< 60 dB
STANDARDS
Safety
EN-IEC 62040-1
Electromagnetic compatibility (EMC)
EN 62040-2(C3)
Operation
VFI-SS-11 (EN-62040-3)
Corporate cerification
ISO 9001, ISO 14001, ISO 45001
DIMENSIONS
Depth (mm)
630
Width (mm)
438
Height (mm)
88
WEIGHT
Weight (kg)
20
(1) 90% power reduction for 208 V devices
(2) Except for devices with extended backup
(3) 90% power reduction
(4) 60% power reduction
Video
Purchase online
Select Region and Country/Province to view Online Sales Channels
Accessories
Generic
BATT MOD for TWIN RT2 0/16AB147-117 50A
Empty Battery Module to house 1 branch of 16 batteries of 7/9 Ah for SLC TWIN RT2 series equipment from 4 to 10 kVA
Code: 698BU000010
BM-R 63 A
The BM-R series maintenance By-pass by Salicru in rack/wall format with 63 A includes, as its most notable features, manual switching from UPS to mains and vice versa, simple operation via selector switch, and allows the loads to operate during maintenance or UPS replacement.
Code: 698OP000023
Measurements (mm): 438x86x123
EAN: 8436035921959
Weight: 3
CABLE SALIDA C14/1-SCHU 1m
Power supply cable, 1 m long, with schuko female inlet / IEC C14 socket outlet
Code: 663BA000014
CABLE SALIDA C14/1-SCHU 2m
2 m long output cable, with IEC C14 inlet / schuko socket outlet
Code: 663BA000008
EAN: 8436035921997
IEC C14/4-Schuko 2m Output Power Strip
2 m outlet strip, 2 m long, with IEC C14 inlet / IEC C14 outlet / 4 Schuko sockets multiple socket outlets
Code: 663BA000004
EAN: 8436035922000
IEC C14/6-Schuko 2m Output Power Strip
2 m outlet strip, 2 m long, with IEC C14 inlet / multiple socket outlet, 6 schuko sockets
Code: 663BA000005
EAN: 8436035923441
IEC C14/C13 1.8mts
Output cable, 1.8 m long, with IEC C14 inlet / IEC C19 output
Code: 663BA000001
EAN: 8436035921973
IEC C20/4-Schuko 2m Output Power Strip
2 m long power strip, with IEC C20 inlet / multiple socket outlet, 4 x schuko sockets
Code: 663BA000006
EAN: 8436035923687
IEC C20/6-Schuko 2m Output Power Strip
2 m long power strip, with IEC C20 inlet / multiple socket outlet, 6 x schuko sockets
Code: 663BA000007
EAN: 8436035923694
IEC C20/C19 1.8mts
1.8 m output cable, 1.8 m long, with IEC C20 inlet / IEC C19 outlet
Code: 663BA000002
EAN: 8436035921980
MNG TP2/RT2 4-10KVA 1,5m
1.5m cable hose to connect the battery module with the UPS from 4 to 10 for SLC TWIN PRO2 and SLC TWIN RT2 series
Code: 018CO000039
EAN: 43-116507-00G
Rack rails 445-1000 mm
Rack rails for 445 ~ 1000 mm deep cabinets for all UPS and rack modules
Code: 6B4OP000001
EAN: 8436584873693
Autonomy
Autonomy curves
SLC 8000 TWIN RT2 B1
|
|
SLC-8000-TWIN RT2 B1 + 2 x 698BU000006
|
|
|
SLC-8000-TWIN RT2 B1 + 3 x 698BU000006
|
|
|
SLC-8000-TWIN RT2 B1 + 4 x 698BU000006
|
|
|
SLC-8000-TWIN RT2 B1 + 5 x 698BU000006
|
