CV30
CV30
Variable frequency drives from 0.4 kW to 7.5 kW
General-purpose vector variable frequency drives

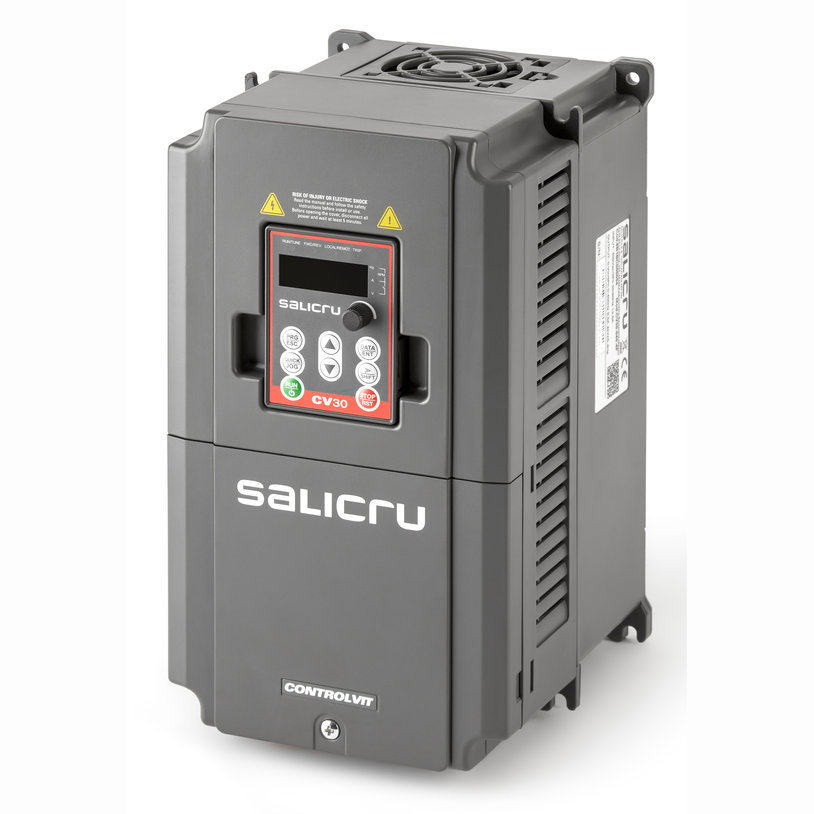

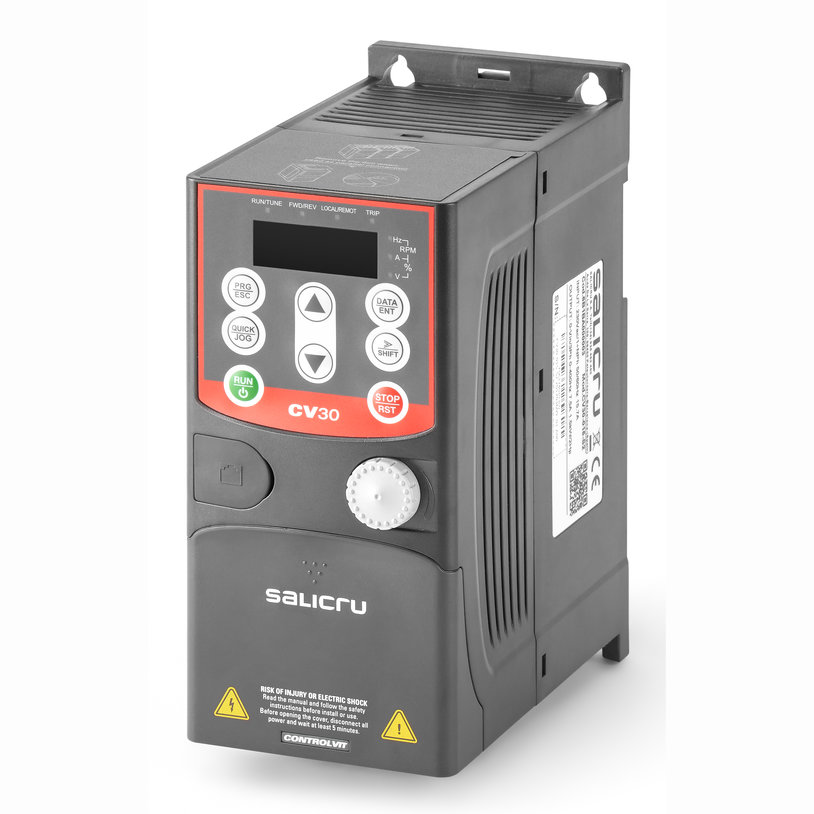

Salicru's Controlvit CV30 variable frequency drive series stands out for its design, reliability, compact size and ease of use. The high quality of its components, advanced features and versatility make it the ideal variable frequency drive for the actuation of low-power motors (0.4 kW to 7.5 kW) in the vast majority of applications, being available for both single-phase (230 VAC) and three-phase (400 VAC and 230 VAC) supply voltages.
Its advanced sensorless vector control, which has two different algorithms depending on the required performance, ensures high torque even when working at very low speeds. In addition to all of this, it features an automatic energy-saving function which achieves significant consumption reductions, mainly in ventilation, water treatment and irrigation applications.
CV30-004-S2
Input voltage AC (V):
Single phase 230 V
Input current (A):
6.5
Output current (A):
2.5
Power (kW):
0.4
CV30-008-S2
Input voltage AC (V):
Single phase 230 V
Input current (A):
9.3
Output current (A):
4.2
Power (kW):
0.75
CV30-015-S2
Input voltage AC (V):
Single phase 230 V
Input current (A):
15.7
Output current (A):
7.5
Power (kW):
1.5
CV30-022-S2
Input voltage AC (V):
Single phase 230 V
Input current (A):
24
Output current (A):
10
Power (kW):
2.2
CV30-008-4
Input voltage AC (V):
Three-phase 400 V
Input current (A):
3.4
Output current (A):
2.5
Power (kW):
0.75
CV30-015-4
Input voltage AC (V):
Three-phase 400 V
Input current (A):
5
Output current (A):
4.2
Power (kW):
1.5
CV30-022-4
Input voltage AC (V):
Three-phase 400 V
Input current (A):
5.8
Output current (A):
5.5
Power (kW):
2.2
CV30-040-4F
Input voltage AC (V):
Three-phase 400 V
Input current (A):
13.5
Output current (A):
9.5
Power (kW):
4
CV30-055-4F
Input voltage AC (V):
Three-phase 400 V
Input current (A):
19.5
Output current (A):
14
Power (kW):
5.5
CV30-075-4F
Input voltage AC (V):
Three-phase 400 V
Input current (A):
25
Output current (A):
18.5
Power (kW):
7.5
