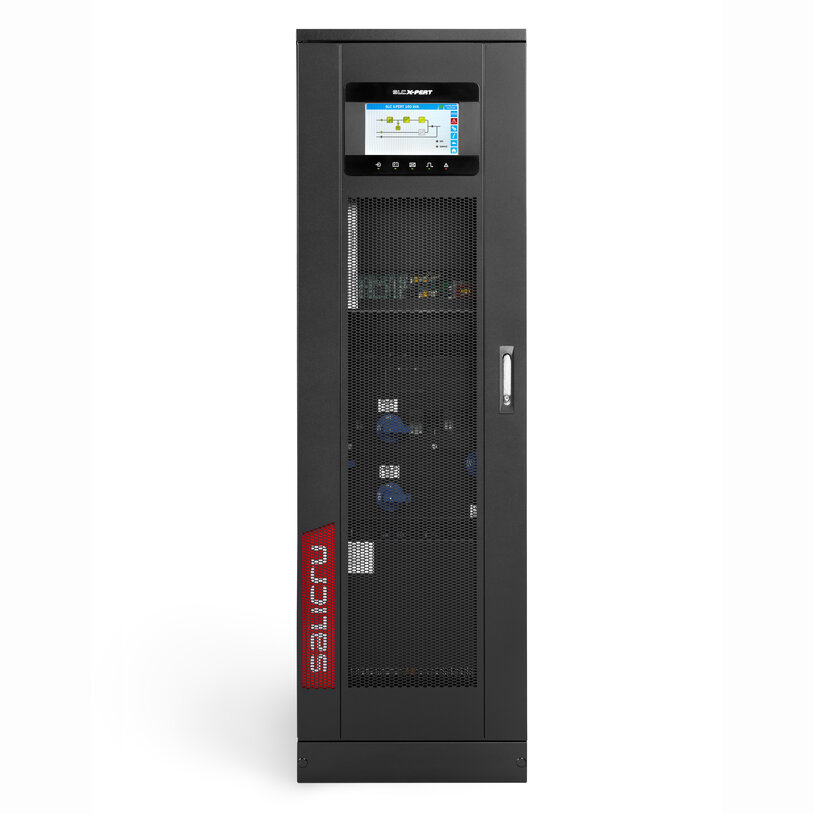

SLC-80-XPERT
SLC-80-XPERT
Uninterruptible Power Systems three-phase from 80 kVA
High critical power facilities protected by high functionalities
Input voltage (V):
3 x 380 V / 3 x 400 V / 3 x 415 V (3F+N)
Output voltage (V):
3 x 380 V / 3 x 400 V / 3 x 415 V (3F+N)
System power (VA/W):
80000/80000
Code: 695KB000004
Specifications
Technical specifications
TECHNOLOGY
On-line, double-conversion, DSP control
INPUT
Voltage
3 x 380 V / 3 x 400 V / 3 x 415 V (3F+N)
Voltage range
+15% / -20% (@ 3 x 400 V)
Rated frequency
50 / 60 Hz (45-65 Hz)
Frequency range
±10%
Total harmonic distortion (THDi)
<3%
Power factor
>0.99
OUTPUT
Power factor
1
Voltage
3 x 380 V / 3 x 400 V / 3 x 415 V (3F+N)
Total harmonic distortion (THDv) Non~linear load
<5%
Synchronised frequency
±2 Hz
Frequency
50 / 60 Hz
Frequency accuracy (battery mode)
±0.001 Hz
Synchronous speed
<1Hz/s
High-efficiency performance
Up to 97%
Total performance in On-line mode
≥95%
Performance in Smart Eco-mode
≥98%
Admissible overloads
125% for 10 min / 150% for 1 min
Crest factor
3 a 1
STATIC BYPASS
Type and activation criteria
Solid state, microprocessor controlled
Voltage (V)
Three-phase 3 x 380 V / 3 x 400 V / 3 x 415 V (3P+N)
Transfer to bypass
Immediate, for overloads exceeding 150%
Retransfer
Automatic after alarm discontinuation
Frequency range
±10% (selectable)
Voltage range
±10% (selectable)
Input
Independent
Frequency
50 / 60 Hz
Admissible overloads
1000% for 1 cycle
BATTERY
Battery type
Lead acid, sealed, maintenance free(1)
Charge type
Type of charge IU (DIN 41773)
COMMUNICATION
Ports
RS-232, USB
Backlit LCD display
10” touch screen
GENERAL
Operating temperature
0 ÷ +40ºC
Storage temperature
-10ºC ÷ +40ºC (with battery) / -10ºC ÷ +70ºC (no battery)
Relative humidity
95% non-condensing
Maxium operating altitude
2400 m.a.s.l.(2)
Acoustic noise at 1 metre
"<60dB up to 160kVA; <65dB up to 300kVA;
<72dB for 400kVA"
STANDARDS
Safety
EN-IEC 62040-1
Electromagnetic compatibility (EMC)
EN-62040-2
Operation
VFI-SS-11 (EN-62040-3)
Corporate cerification
ISO 9001, ISO 14001, ISO 45001
DIMENSIONS
Depth (mm)
940
Width (mm)
560
Height (mm)
1500
WEIGHT
Weight (kg)
740
(1) Ni-Cd, Li-Ion and other types of battery available on request.
(2) Power degradation up to 5,000 masl.
