SPS 700 ONE - 700 VA Line-interactive Uninterruptible Power Systems (UPS)

SPS 700 ONE

700 VA Line-interactive Uninterruptible Power Systems (UPS)

The best electrical protection for home and professional office

Power (VA): 700

Output type: Schuko (DIN)

No. Of sockets: 2

Code: 662AF000002

EAN: 8436584870180

Specifications

Video

Purchase online

Services

Accessories

Downloads

Request information

Specifications

Technical specifications

TECHNOLOGY

Line-interactive

FORMAT

Tower

INPUT

Rated voltage

220 V / 230 V / 240 V AC

Voltage range

Until 162 V ÷ 290 V

Stabiliser

AVR Buck / Boost

Rated frequency

50 / 60 Hz

Autodetection of frequency

Yes

Protection

Thermal re-arm or fuse (depending on model)

OUTPUT

Rated voltage

220 V / 230 V / 240 V AC

Voltage accuracy (battery mode)

±10%

Power (VA)

700

Waveform (battery mode)

Simulated sineware

Frequency

50 / 60 Hz ± 1 Hz (1)

Transfer time

2 / 6 ms

Socket type

Schuko (DIN)

BATTERY

Battery type

Enclosed batteries Pb-Ca without maintenance, sealed, design life 3-5 years

Recharge time

4-6 hours until 90% capacity

User replaceable battery

Yes

Back up time

Up to 20 minutes

Battery replacement alarm

Yes

COMMUNICATION

Ports

USB HID

Monitoring software

Compatible with Windows, Linux, Unix and Mac

Downloadable from

support.salicru.com

INDICATIONS

Type

LED

Operating modes

Normal / Stabilisation (AVR) / Battery

Mains present

Green LED

Alarm

Battery / low battery / overcharge / fault

Audible

Every 10 s for battery operation. Every 1 s for low battery. Every 0.5 s for overcharge. Continuous for fault 2 s for battery replacement.

Failure

Red LED

OTHER FUNCTIONS

Cold start (start-up from batteries)

Yes

Automatic restart

Yes, after the end of back up time

GENERAL

Operating temperature

0º C ÷ + 40º C

Relative humidity

Utill 90%, without condensation

Maxium operating altitude

2,400 masl

Acoustic noise at 1 metre

< 40 dB

STANDARDS

Safety

EN IEC 62040-1

Electromagnetic compatibility (EMC)

EN IEC 62040-2

Operation

EN IEC 62040-3

Corporate cerification

ISO 9001, ISO 14001, ISO 45001

DIMENSIONS

Depth (mm)

300

Width (mm)

101

Height (mm)

142

WEIGHT

Weight (kg)

4.5

(1) Battery mode

Video

Purchase online

Region

Country

Select Region and Country/Province to view Online Sales Channels

Services

Commissioning

Puesta en Marcha 0.3 - 3 kVA UPS & Stabilisers

Commissioning for Uninterruptible Power Supply (UPS) systems and voltage stabilizers with power range 0.3 - 3 kVA inclusive. During established working hours.

Code: 502AA000052

Puesta en Marcha fuera de horario laboral <=35 kVA

Salicru out-of-hours commissioning service for UPS and stabilisers up to 35 kVA

Code: 502AA000067

Warranty extensions

EW+1Y ONE 0,5-0,9K

Warranty Extension +1 YEAR for models SPS ONE 500/700/900 VA - Standard Backup

Code: 557AA000339

EAN: 8436035929061

Maintenance contracts

Additional Preventive Visit VP+ 0.4-3 kVA

Additional preventive visit included during warranty or maintenance contract for UPS and Stabilisers with power between 0.4-3 kVA (for any maintenance contract modality)

Code: 555AB002221

Maintenance Contract FV 1Y

Annual maintenance contract with equipment replacement in case of failure or end of useful life. During established working hours.

Code: 555AB999998

Maintenance Contract VP 1Y

Annual maintenance contract with preventive visit. Corrective visits, batteries, materials, and consumables not included. During established working hours.

Code: 555AB999999

Technical Support 24/7

Continuous technical assistance available 24 hours a day, 7 days a week, ensuring rapid help whenever needed (for any maintenance contract modality)

Code: 555AB002219

Telephone Support 24/7

24/7 telephone support providing immediate assistance, technical advice, and help with any issues at any time, day or night. (for any maintenance contract modality)

Code: 555AB002220

Accessories

Communications

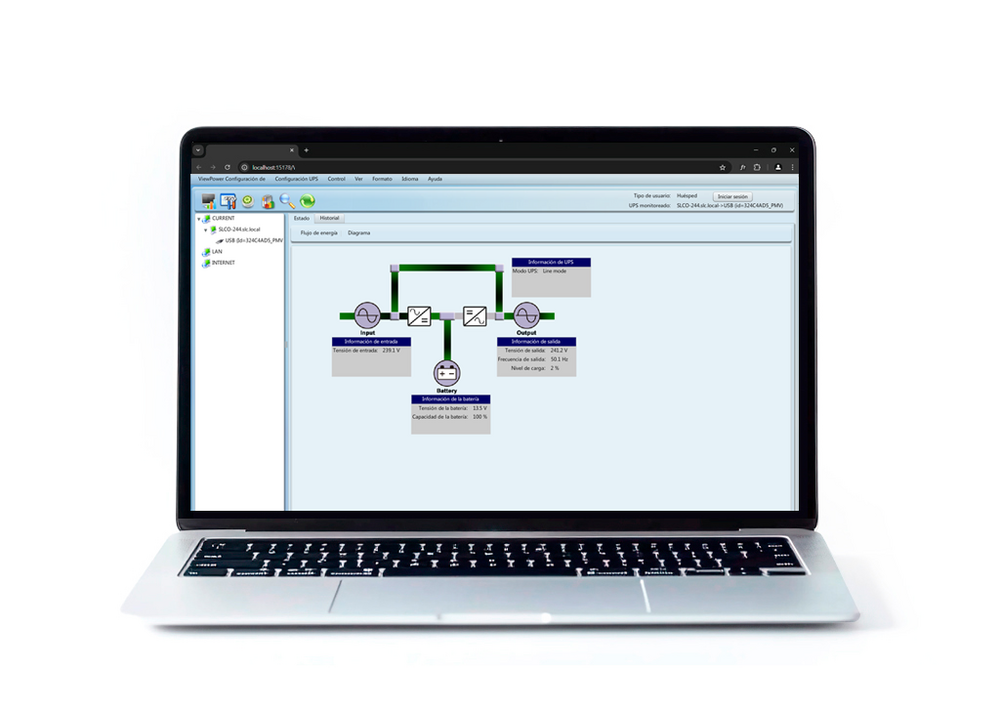

SOFTWARE VIEWPOWER

Viewpower is an advanced UPS management and administration software. It allows remote monitoring and remote management of one to several UPS in a network environment, either LAN or Internet. Downloadable via web.

Code: 663AA999998

Downloads

Documents

Data sheet

Data Sheet SPS ONE

ES · CA · EN · FR · DE · PT

Manuals

Quick Start SPS ONE

ES · CA · EN · FR · DE · PT

Manual SPS ONE

ES · EN · FR · DE · PT

Dimensional Drawing SPS ONE

ES · CA · EN · FR · PT

Certificates & Declarations

Declaration of conformity - CE SPS ONE

ES · EN

Declaration of conformity - CE SPS ONE

ES · EN

Instructions

End Of Life Instructions SPS ONE

ES · EN

Software

VIEWPOWER HTML

Windows

installViewPower_Windows - 109MB Download

Mac OS

ViewPowerHTML_MAC_x64_Intel. - 81.7MB Download

installViewPowerHTML_MAC_x64_Mchip - 79.1MB Download

Linux

ViewPowerHTML_Linux_x86_64 - 77MB Download

ViewPowerHTML_Linux_text_x86_64 - 116 MB Download

ViewPowerHTML_Linux_text_i386 - 77,9MB Download

ViewPowerHTML_Linux_i386 -77.3MB Download

Windows

ViewpowerHTML5 user's manual Download

Mac OS

ViewpowerHTML5 user's manual Download

Linux

ViewpowerHTML5 user's manual Download
